Atlas — Specification Sheet
Model AT32 · Table Lamp
Overall Height
21”
With shade installed
Base Diameter
7”
Solid steel weighted base plate housed in aluminum body with rubber feet
Body
14-gauge
Metal-spun aluminum, one-piece
Finishes
14
12 powder coat + 2 premium plated
Configure Your Lamp
Model AT32 · Atlas
1
Select Shade
The Atlas ships with a single TriLam Drum shade.
TriLam

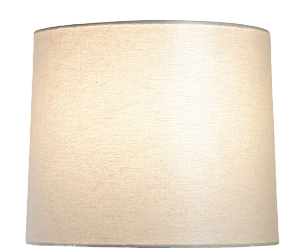

TriLam Drum
Code: DS5
11” top × 12” bottom × 10” slant
1b
Select Shade Color
Select a color, then choose the shade edge treatment below.
Standard
Natural
in stock
Cream
White
Custom Colors (min. 30 lamps)
Medium Gray
Spice
Amber
Champagne
Green
Brown
Green Tea
Gray
Daffodil
Iron
Shade Edge
2
Select Base Configuration
Flush base configurations are not offered on the Atlas.

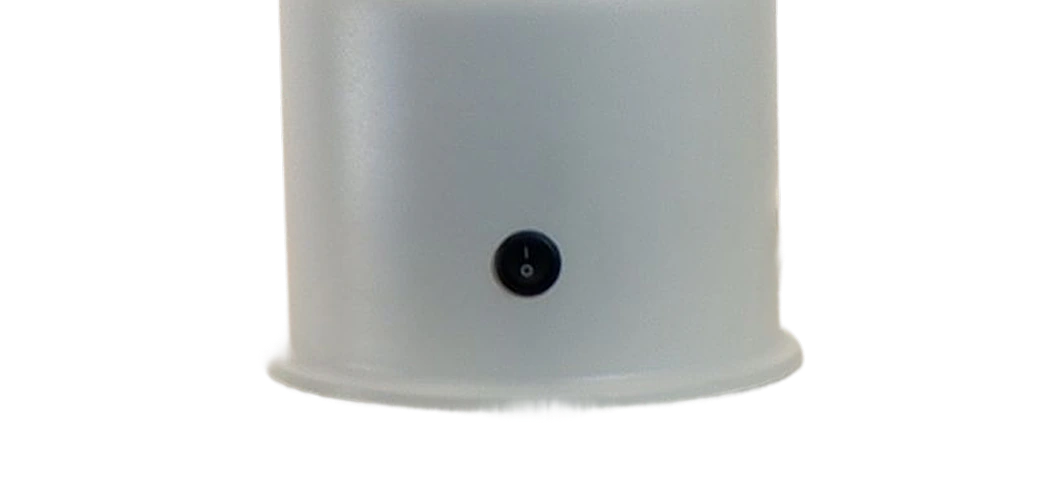

Freestanding
Code: FS · Standard, Included
Solid steel weighted base plate housed in aluminum body with rubber feet

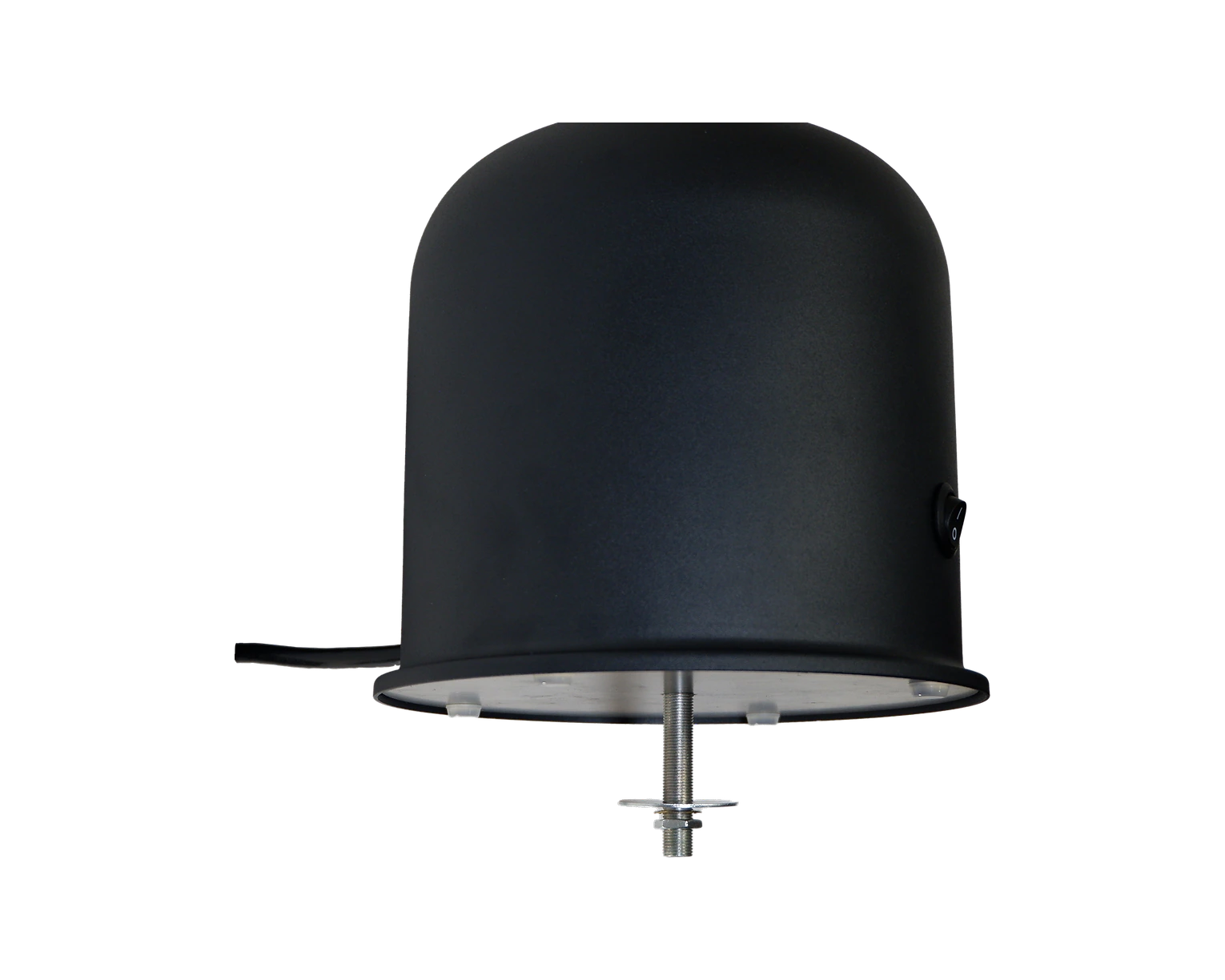

SecureMount
Code: SM
Bolt-down security mount, cord exits through body

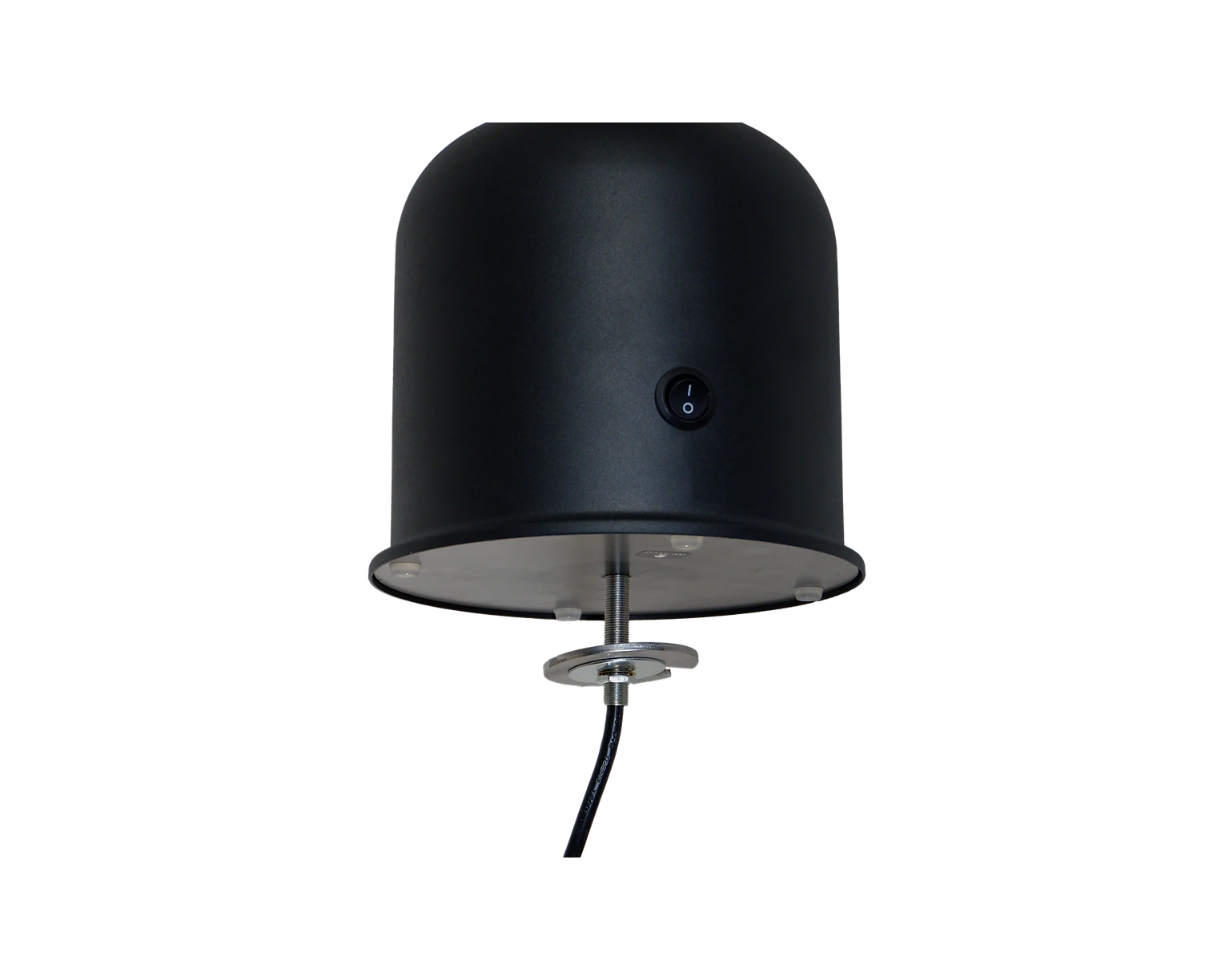

SecureMount Pro
Code: SMP
Bolt-down with concealed cord. Tamper-resistant.
3
Select Lamp Body Finish
Applied to the full spun aluminum body. All powder coat finishes included in list price.
Powder Coat Finishes
Cream
Quick Ship
Midnight
Quick Ship
Silver Champagne
Quick Ship
Taupe
Matte White
Dove Grey
Cannon Grey
Granite Sage
Wetstone Navy
Satin Poly Gold
US Bronze
Wetstone Bronze
Premium Plated (Upcharge)
Satin Nickel
Satin Brass
4
Select Accent Finish
Applies to the rings at the top & bottom of the neck.
Nickel
Brass
Silver Champagne (upcharge)
Satin Poly Gold (upcharge)
5
Select Add-Ons
Lighting & Safety
OPT-10322SR
LED Bulb, Shatter-Resistant, 60W Eq.
OPT-10322WIFI
LED Smart Bulb, 60W Equivalent
OPT-10094DIM
Full Range Dimmer
Power & Connectivity
OPT-10058
Convenience Outlet (3-prong, 7A rated)
OPT-10058x2
Dual USB / USB-C Outlet (5Vdc, 2.1A Max, on back of body)
OPT-10148
Hospital Grade Plug w/ SJT cord
Mounting
OPT-10136RF
Bolt-Down Retrofit Kit
